A successful manufacturing AI agent needs more than a large language model. It needs architecture.

In smart manufacturing, an AI agent must understand operational context, retrieve accurate data, reason through constraints, use tools safely, and involve humans when decisions carry risk. Without the right architecture, an AI agent becomes just another chatbot. With the right architecture, it becomes part of a decision workflow.

This article explains a practical AI agent architecture for manufacturing teams.

Layer 1: Manufacturing Data Sources

The first layer is the data foundation.

Manufacturing decisions depend on many systems. These may include MES for production execution, ERP for orders and inventory, QMS for quality records, CMMS for maintenance, SCADA or historians for machine data, WMS for warehouse data, and spreadsheets for local planning.

The AI agent does not need all data on day one. However, it needs access to the data required for the specific decision it supports.

For example, a production scheduling AI agent may need customer orders, routing, machine capacity, WIP, material availability, labor constraints, and due dates.

A yield loss analysis agent may need defect records, process parameters, material lots, equipment history, operator shifts, and product specifications.

The data architecture should start with the decision, not with the database.

Layer 2: Context and Knowledge Retrieval

The second layer is the context layer.

Manufacturing knowledge often lives outside structured databases. It may be stored in SOPs, engineering notes, troubleshooting guides, quality reports, maintenance logs, process specifications, and PDF documents.

This is where retrieval-augmented generation, or RAG, becomes useful. RAG allows the AI agent to retrieve relevant knowledge before generating an answer or recommendation.

For example, if an operator asks how to respond to a specific machine alarm, the agent should not guess. It should retrieve the relevant troubleshooting guide, safety procedure, and historical incident notes.

A strong context layer reduces hallucination risk and improves trust.

Layer 3: Reasoning and Planning

The third layer is the reasoning layer.

This is where the AI agent interprets the situation, identifies constraints, compares options, and proposes next actions.

In manufacturing, reasoning is important because decisions often involve trade-offs. Improving schedule adherence may increase changeover time. Reducing downtime may require rescheduling production. Improving quality may reduce short-term throughput.

A good AI agent should not only provide an answer. It should explain the logic behind the recommendation.

For example:

“The agent recommends moving Job A to Line 2 because Line 1 has a maintenance risk, Line 2 has available capacity after 2 p.m., material is already available, and the changeover impact is lower than delaying the customer order.”

This kind of explanation helps planners, engineers, and managers trust the recommendation.

Layer 4: Tool and System Integration

The fourth layer is the tool integration layer.

An AI agent becomes much more valuable when it can interact with systems. It may query MES, check ERP inventory, retrieve documents, create a maintenance ticket, draft an email, update a task, or send a workflow for approval.

Tool integration can be built through APIs, database connectors, workflow platforms, or standards such as MCP-style tool connections.

The important principle is control. The agent should not have unlimited access. Each tool should have clear permissions, allowed actions, and approval rules.

For example, an agent may be allowed to draft a schedule change but not publish it without planner approval.

Layer 5: Human Review and Approval

The fifth layer is human review.

In manufacturing, some decisions affect safety, quality, compliance, customer delivery, and cost. These decisions should not be fully automated without governance.

A practical AI agent architecture should define approval levels.

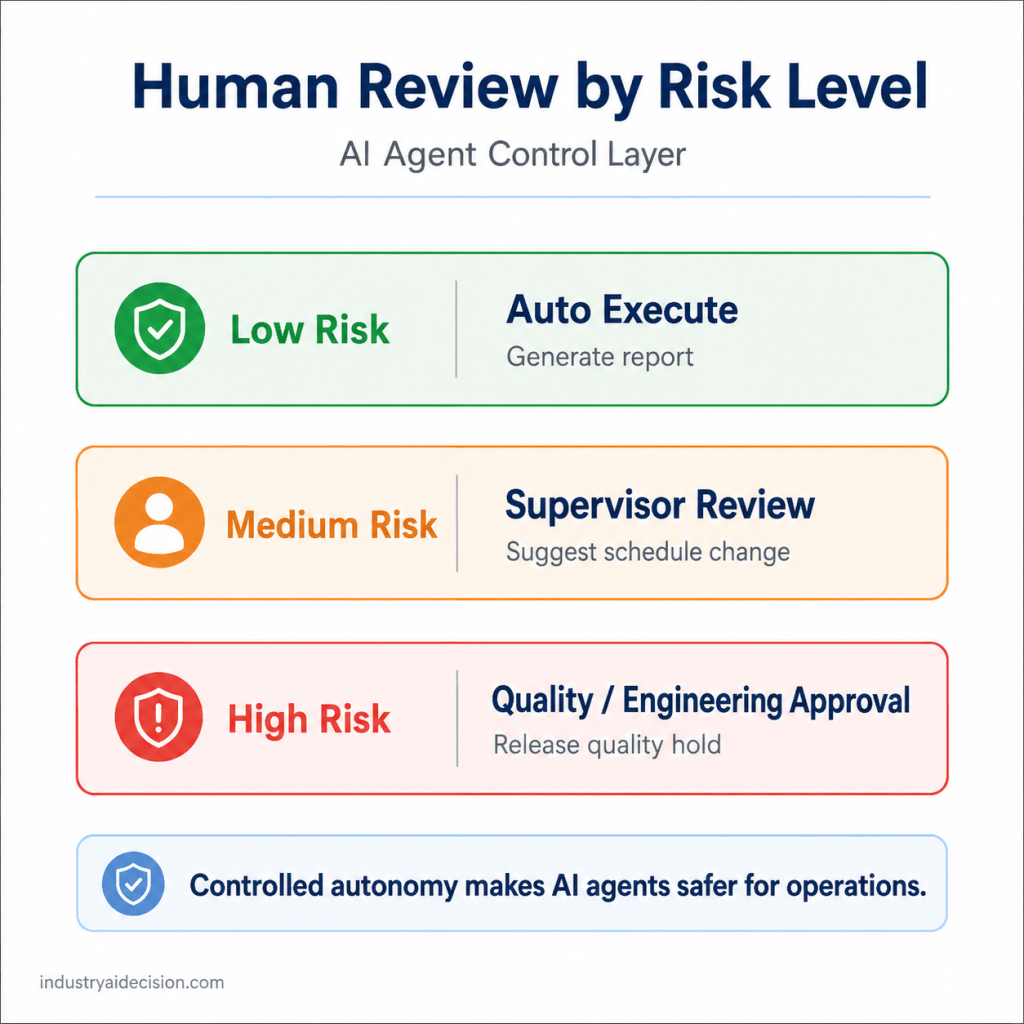

Low-risk actions may be automated. Medium-risk actions may require supervisor review. High-risk actions may require approval from engineering, quality, or operations leadership.

For example, sending a production summary email may not need approval. Recommending a job sequence change may require planner approval. Releasing a quality hold should require quality authority approval.

Human-in-the-loop design is not a weakness. It is a safety layer.

Layer 6: Audit Logs and Performance Monitoring

The final layer is monitoring.

Every important agent recommendation should be traceable. The system should record what data was used, what recommendation was made, who approved it, what action was taken, and what outcome occurred.

This creates an audit trail and also supports continuous improvement.

Over time, teams can measure whether the AI agent improves schedule adherence, reduces downtime, accelerates root cause analysis, or improves response time.

Conclusion

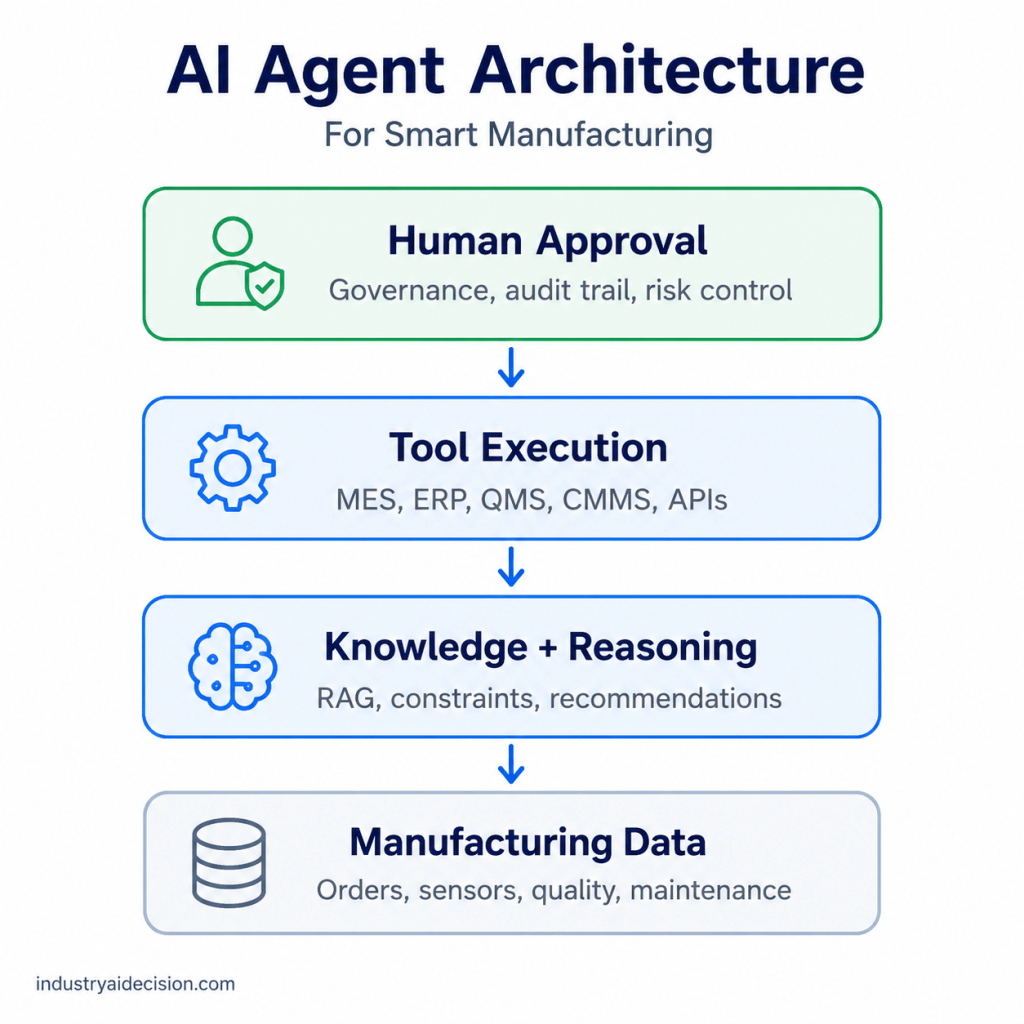

AI agent architecture for smart manufacturing must combine data, context, reasoning, tools, and human review.

The goal is not to replace manufacturing experts. The goal is to give them better decision support, faster analysis, and safer workflows.

A well-designed manufacturing AI agent should be useful, explainable, integrated, controlled, and measurable.

That is the foundation for moving AI agents from experiment to production.
