Normal Distribution Explained for Industrial Data

Formula Notes / Statistics for Industrial A

Many manufacturing measurements cluster around a central value. Product dimensions, filling weights, sensor noise, machining error, and repeated cycle times often show many observations near the average and fewer observations farther away.

The normal distribution is a mathematical model for this familiar bell-shaped pattern. It is defined by two parameters: the mean, which sets the center, and the standard deviation, which sets the spread. When the normal model is appropriate, these two numbers provide a compact description of what values are common, unusual, or extremely unlikely.

For industrial AI, the normal distribution provides a reference for monitoring, anomaly detection, quality prediction, and risk estimation. It is useful—but only when the data and operating conditions support the assumption.

QUICK ANSWER: The normal distribution is a symmetric bell-shaped model defined by mean μ and standard deviation σ. It helps AI estimate expected ranges, but the data should be checked for skew, mixtures, drift, and time dependence before the model is trusted.

1. Why Normal Distribution Matters

The normal distribution turns the concepts of average and variation into a complete probability pattern. Values near the mean are most common. Values become less common as their distance from the mean increases. This makes it possible to estimate how unusual an observation is.

Under a normal distribution, approximately 68.3% of observations fall within one standard deviation of the mean, 95.4% fall within two standard deviations, and 99.7% fall within three standard deviations. This is often called the 68-95-99.7 rule.

The rule gives engineers and AI systems an intuitive way to describe operating ranges. A value 0.5 standard deviations from the mean is common. A value 3 standard deviations away is unusual under a stable normal process.

MANAGERIAL MEANING: The mean describes process centering. The standard deviation describes process spread. Both must be monitored because a process can shift, become more variable, or do both.

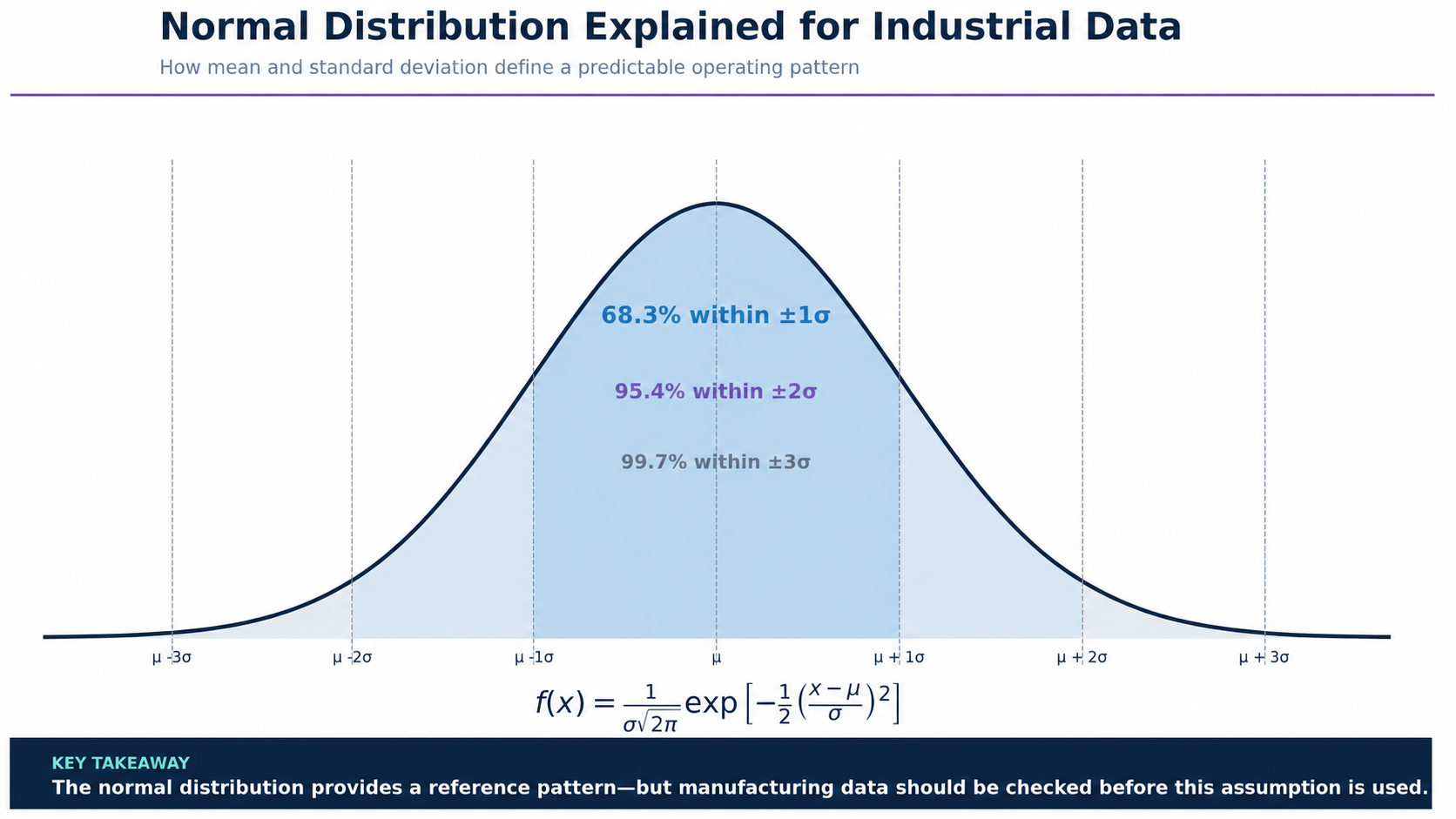

Figure 1. The normal distribution and the 68-95-99.7 rule.

2. The Industrial Problem

A factory needs to distinguish natural process variation from a meaningful change. A machined dimension will not be identical for every unit. A temperature sensor will contain measurement noise. A filling process will produce small weight differences. The presence of variation is normal; the question is whether the variation follows the established pattern.

When a stable process can be reasonably modeled by a normal distribution, the AI system can estimate the expected range of future observations. It can flag points that are unlikely under the current baseline, detect a shift in the mean, or detect an increase in standard deviation.

This is useful before a hard specification is violated. A process may still produce acceptable parts while its center moves toward a limit or its spread gradually increases. Early detection gives the factory time to investigate before defects increase.

3. The Formula

The probability density function of a normal distribution is:

The formula creates a symmetric curve centered at μ. The value of σ controls the width. A smaller σ produces a narrow, high curve because observations are concentrated near the mean. A larger σ produces a wider, lower curve because the data are more spread out.

The density f(x) is not itself the probability of observing exactly one continuous value. Probability is represented by area under the curve across a range of values. The total area under the curve equals 1.

4. What Each Symbol Means

Table 1. Symbols in the normal distribution formula.

Symbol	Meaning
x	A possible observed value, such as a product dimension or sensor reading.
μ	The population mean, which determines the center of the distribution.
σ	The population standard deviation, which determines the spread.
π	The mathematical constant pi.
e	The base of the natural logarithm.
f(x)	The probability density at value x.

A related quantity is the z-score, which expresses an observation in standard-deviation units:

A z-score of +2 means the observation is two standard deviations above the mean. A z-score of -1.5 means it is one and a half standard deviations below the mean.

5. A Simple Manufacturing Example

Assume a precision dimension has a target mean of 10.00 mm and a standard deviation of 0.05 mm. If the distribution is approximately normal and the process remains stable, the expected ranges are:

Table 2. Expected ranges for a normal process with μ = 10.00 mm and σ = 0.05 mm.

Range	Dimension interval	Approximate share
μ ± 1σ	9.95 to 10.05 mm	68.3%
μ ± 2σ	9.90 to 10.10 mm	95.4%
μ ± 3σ	9.85 to 10.15 mm	99.7%

A measurement of 10.12 mm has a z-score of (10.12 – 10.00) / 0.05 = 2.4. It is unusual relative to the baseline but not impossible. The AI system should consider whether it is an isolated observation, part of a trend, or evidence that the process mean or spread has changed.

The interpretation also depends on specification limits. A statistically unusual point may still be within specification, while a stable distribution can produce defects if it is too wide or off-center.

6. How AI Agents Use the Normal Distribution

An AI agent can fit or estimate a baseline distribution during known stable operation. New measurements can then be converted to z-scores or tail probabilities. The agent can use these values as evidence for monitoring and decision support.

• Flag observations that are unlikely under the current stable baseline.
• Monitor changes in μ to detect process centering drift.
• Monitor changes in σ to detect growing instability or loss of control.
• Estimate the probability that future output will exceed a specification limit.
• Compare distributions across machines, products, suppliers, or time periods.
• Combine distribution evidence with rules, maintenance history, and other model outputs before escalating.

A professional agent avoids treating every point beyond a fixed z-score as a failure. It considers persistence, sequence, operating mode, measurement quality, and consequence. One extreme point may be sensor noise; a pattern of increasing z-scores may be a meaningful drift.

7. Process Distribution Is Not the Same as Specification

Specification limits describe what the product or process must satisfy. The process distribution describes what the process is currently producing. These are different concepts.

A process can be normally distributed and still be incapable. If the standard deviation is too large, the distribution extends beyond the limits. A process can also have a small standard deviation but be shifted away from the target, causing one tail to cross a limit.

Figure 2. Centered and shifted normal process distributions relative to specification limits.

PRACTICAL CAUTION: Control limits are estimated from process behavior; specification limits come from design or customer requirements. They should not be used interchangeably.

8. When the Normal Assumption Fails

Not all manufacturing data are normal. Cycle time may be right-skewed because it cannot be less than zero but can be delayed by long interruptions. Failure time may follow Weibull or lognormal patterns. A process that mixes several products or operating modes may produce a multimodal distribution. Sensor data may be autocorrelated because each reading depends on the previous reading.

• Plot a histogram or density curve and look for skew, long tails, or multiple peaks.
• Use a normal probability plot or Q-Q plot to compare the data with a normal pattern.
• Segment by product, machine, recipe, shift, and operating mode before fitting one distribution.
• Check whether the mean and standard deviation remain stable over time.
• Inspect serial correlation and avoid treating dependent time-series observations as independent.
• Use a more appropriate distribution or non-parametric method when the normal assumption is not credible.

The goal is not to force data into a bell curve. The goal is to use the simplest model that represents the operating process well enough for the intended decision.

9. Key Takeaway

KEY TAKEAWAY: The normal distribution helps industrial AI describe expected variation, estimate unusualness, and monitor changes in process center and spread. It is a useful reference model, not an automatic truth about every manufacturing signal.

Remember the operational distinction: a normal shape describes a pattern; process capability and decision readiness require centering, spread, stability, specification limits, and context.
